fescpe18-m1h-5j-1/4

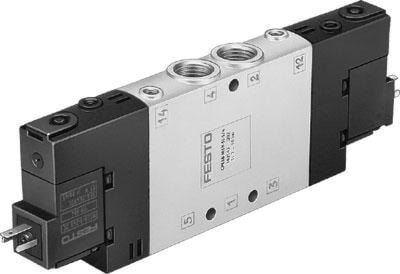

FESTO INC 163143 CPE18-M1H-5J-1/4 solenoid valve
fescpe18-m1h-5j-1/4
FESTO INC 163143 CPE18-M1H-5J-1/4 solenoid valve
Price
$355.33
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:163143
Description
solenoid valve CPE18-M1H-5J-1/4 High component density Valve function=5/2 bistable, Type of actuation=electrical, Width=18 mm, Standard nominal flow rate=1500 l/min, Operating pressure MPa=0,2 - 1 MPa
Specifications
| Brand Name | Festo | Item Name | Compressed Air Solenoid Valve |
| Type | 2-Position, 5-Way | Pressure Rating | 2 - 10 bar |
| Body Material | Die-Cast Aluminum | Series/Model | CPE |
| Nominal Size | 8 mm | Actuator | Electrical |
| Flow Rate | 1500 l/min | Softgoods Material | NBR |
| Dimensions | 57 mm L x 18 mm W | Temperature Rating | -5 to 50 °C |
| Standards | cULus Listed, RoHS Compliant |
