fescpe14-m1bh-5/3g-1/8

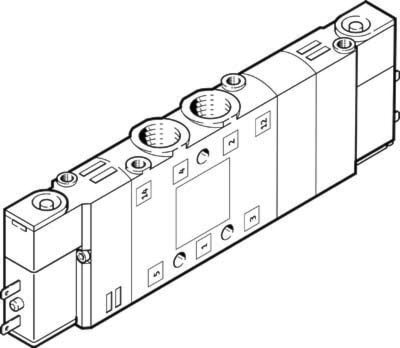

FESTO INC 196937 CPE14-M1BH-5/3G-1/8 solenoid valve
fescpe14-m1bh-5/3g-1/8
FESTO INC 196937 CPE14-M1BH-5/3G-1/8 solenoid valve
Price
$415.14
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:196937
Description
solenoid valve CPE14-M1BH-5/3G-1/8 High component density Valve function=5/3 closed, Type of actuation=electrical, Width=14 mm, Standard nominal flow rate=750 l/min, Operating pressure MPa=0,3 - 0,8 MPa
Specifications
| Brand Name | Festo | Item Name | Compressed Air Solenoid Valve |
| Type | 3-Position, 5-Way | Pressure Rating | 3 - 8 bar |
| Body Material | Die-Cast Aluminum | Series/Model | CPE |
| Nominal Size | 6 mm | Actuator | Electrical |
| Flow Rate | 750 l/min | Softgoods Material | NBR |
| Dimensions | 40.3 mm L x 14 mm W | Temperature Rating | -5 to 50 °C |
| Standards | cULus Listed, RoHS Compliant |
