fes4745216

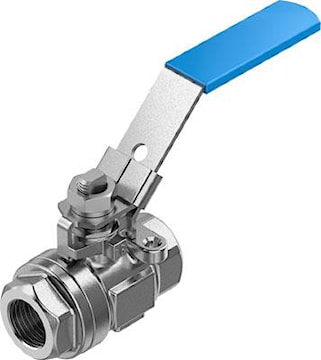

FESTO INC 4745216 VZBE-1/2-T-63-D-2-M-V15V15 ball valve
fes4745216
FESTO INC 4745216 VZBE-1/2-T-63-D-2-M-V15V15 ball valve
Price
$42.97
/ EA
Inventory
4for delivery
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:4745216
Description
ball valve VZBE-1/2-T-63-D-2-M-V15V15 Stainless steel, manual version, 2/2-way, nominal width 1/2", PN63, ASME B1.20.1 - NPT. Design structure=2-way ball valve with hand lever, Type of actuation=mechanical, Sealing principle=soft, Assembly position=Any, Mounting type=Line installation
Specifications
| Brand Name | Festo | Item Name | Compressed Air Ball Valve |
| Type | 2-Way | Connection Type | FNPT |
| Pressure Rating | 63 bar | Body Material | Stainless Steel |
| Series/Model | VZBE | Nominal Size | 1/2 in |
| Actuator | Mechanical | Flow Rate | 32 m³/h |
| Handle Type | Lever | Softgoods Material | PTFE |
| Seat Material | PTFE | Dimensions | 15 mm ID |
| Temperature Rating | -20 to 200 °C | Standards | ASME B1.20.1, RoHS Compliant |
