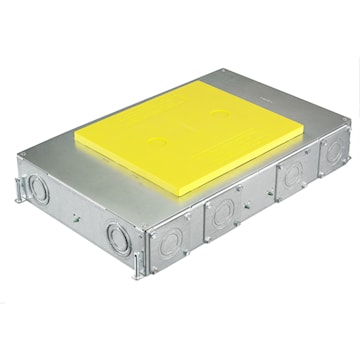

HUBBELL CANADA ULC CFB6G30 Cover rectangular standard 6-gang 3"

Price $628.65 / EA
Inventory
Available for backorder
0for pick up at Burlington
Qty EA
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:CFB6G30
Documents Documents

Description

Rectangular cover designed for applications requiring up to 2 inch conduits integrated 2 inch knockouts and a rectangular cover. When a 3 inch concrete pour is required the insert is removed and requires the finished floor type to be carpet or another engineered floor type. Includes a 1/2 inch plastic cover insert is included and allows for easy use in tile, finished concrete or other mediums, eight removable knock out plates 1 per device 2 per gang can be replaced with 2 inch zinc conduit hub CFBHUB2 when needed.


Recessed 6-Gang Rectangular Cover Floorbox

For Use In Concrete Floors

3.00" Minimum Depth of Pour

Box Includes Installation Cover & 1/2" Prepour Cap

Each Gang Includes (1) 6" Solid Conductor Grounding Pigtail

2" Threaded Hub CFBHUB2 Sold Seperatly

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand Concrete Floor Boxes
Item Name Recessed Floor Box Type Rectangular, Standard Sized
Length 17.45 in Width 11.04 in
Cubic Capacity 33 in³ Number of Gangs 6
Material Steel Color Metallic
Mounting Type Cast Into Concrete Series/Model CFB
Cable Entry (12) 1/2 - 2 in Knockout Standards UL 514 Listed
Application For Use with Concrete Floor Boxes UPC 783585540948
