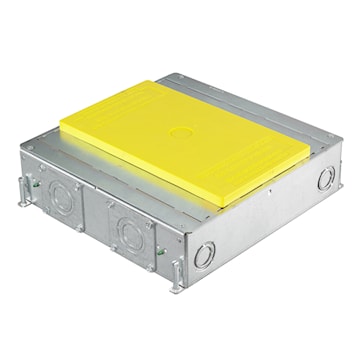

HUBBELL CANADA ULC CFB4G30 SystemOne Floor Box 4 Gangs Rectangular Recessed Metallic

Price $394.96 / EA
Inventory
Available for backorder
0for pick up at Burlington
Qty EA
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:CFB4G30
Documents Documents

Description

Rectangular cover designed for applications requiring up to 2 inch conduits integrated 2 inch knockouts and a rectangular cover. When a 3 inch concrete pour is required the insert is removed and requires the finished floor type to be carpet or another engineered floor type. Includes a 1/2 inch plastic cover insert is included and allows for easy use in tile, finished concrete or other mediums, four removable knock out plates 1 per gang can be replaced with 2 inch zinc conduit hub CFBHUB2 when needed.


Recessed 4-Gang Rectangular Cover Floorbox

For Use In Concrete Floors

3.00" Minimum Depth of Pour

Box Includes Installation Cover & 1/2" Prepour Cap

Each Gang Includes (1) 6" Solid Conductor Grounding Pigtail

2" Threaded Hub CFBHUB2 Sold Seperatly

Designed for applications requiring up to 2 in. conduits (with use of CFBHUB2 purchased separately)

Stamped steel construction

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand SystemOne
Item Name Floor Box Type Rectangular
Length 12.08 in Width 11.2 in
Depth 3-1/2 in Cubic Capacity 32.5 in³
Number of Gangs 4 Material 16 ga Steel
Finish Galvanized Color Metallic
Mounting Type Recessed Series/Model CFB
Gangable True Cable Entry (2) 1 in, (2) 1/2 in, (2) 3/4 in Side Knockout, 1/2, 3/4 and 1 in Bottom Knockout
Includes Yellow Concrete Cover Standards UL 514
Application Use in Concrete Floors UPC 783585447230
