missv40
ELECTRO SONIC GROUP INC SV 40 LUMBERG,4PIN CIRCULARCONNECTR
missv40
ELECTRO SONIC GROUP INC SV 40 LUMBERG,4PIN CIRCULARCONNECTR
Price
$14.06
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:ELECTRO SONIC GROUP INC
Manufacturer #:SV 40
Description

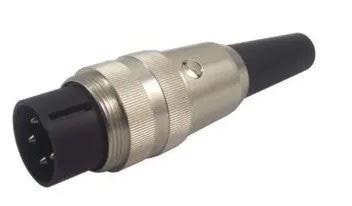

DIN Audio or Video Connector with IP 40, 4 contacts, plug, cable mount, solder, gold plated contacts. It is a 4 pole plug circular connector with threaded joint. This straight version plug with ground contact and solder terminals and has a long bend protection (TPE). The SV40 complies with IEC 61076-2-106.
Specifications
| Brand Name | Lumberg | Item Name | Circular Connector with Threaded Joint |
| Type | 4-Pole, Straight | Voltage Rating | 300 V |
| Amperage Rating | 5 A | Cable Size | 20 AWG |
| Contact Material | Copper-Zinc | Contact Plating | Silver-Plated and Flash Gold-Plated |
| Housing Material | Nickel-Plated Copper-Zinc | Rated Impulse Voltage | 1500 V |
| Degree of Protection | IP40 | Temperature Range | -40 to 85 °C |
| Standards | IEC 61076-2-106 |
