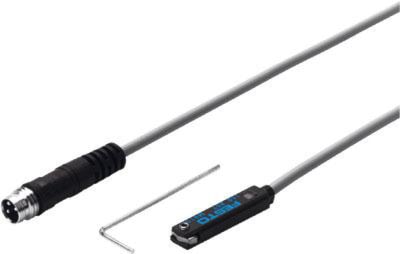

FESTO 150857 SME-8-S-LED-24 proximity sensor
Description
proximity sensor SME-8-S-LED-24 Electric, with reed contact, for drives with T-slot, with M8 plug. Design=for T-slot, Conforms to standard=EN 60947-5-2, Authorisation=RCM Mark, CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=Free of copper and PTFE
Specifications
Brand Name | Festo | Item Name | Proximity Sensor |
Type | Magnetic Reed | Thread Size | M8x1 |
Connection | 3-Pin Plug | Output | Contact-Based, Bipolar, NO |
Voltage Rating | 12 - 30 VAC/VDC | Amperage Rating | 500 mA |
Operating Frequency | 800 Hz | Cable Length | 0.3 m |
Degree of Protection | IP67 | Indicator Type | LED Yellow |
Material | Epoxy Resin/High Alloy Stainless Steel/PC/PET/TPE-U (PUR) | Color | Black |
Temperature Rating | -40 to 70 °C | Standards | CE Certified, EN 60947-5-2, RCM, RoHS Compliant, UKCA, VDMA24364-B2-L |
