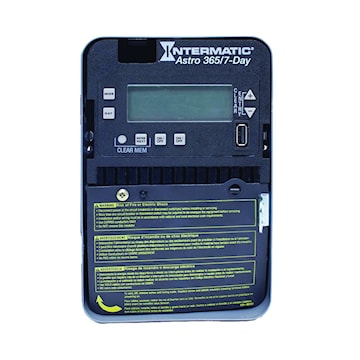

INTERMATIC INC ET2825C Timer control SPST 2-circuit indoor metal 30A 120-277VAC
intet2825c
INTERMATIC INC ET2825C Timer control SPST 2-circuit indoor metal 30A 120-277VAC
Price
$456.29
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:INTERMATIC INC
Manufacturer #:ET2825C
Description
7-Day Astronomic electronic control feature independent 7-day programming for convenient flexibility when load switching differs daily. These electronic controls provide dependable and uncomplicated performance, plus to-the-minute programming for accurate load control and reduced energy costs. Up to 48 ON and 48 OFF events can be preset to automatically repeat. Each event can be applied to any combination of circuits and days. Each circuit can be independently scheduled for astronomic (Dusk/Dawn) ON/OFF events.
100-hour supercapacitor eliminates the need for batteries
Up to 96 set points or events
Up to 50 holiday blocks with schedule capabilities
Automatic input voltage selection from 120 to 277 VAC, 60 Hz
Additional mode of operation turns the ON/OFF buttons into 2-hour overrides
Configurable outputs allow the control of various voltages and applications
Relays incorporate zero-crossing technology to extend the life of the control
Non-volatile EEPROM memory protects programming indefinitely
LED compatible
USB port makes transferring and saving of schedules easy
Specifications
| Brand Name | Intermatic | Item Name | Astronomic Electronic Control |
| Type | Astronomic, Electronic | Voltage Rating | 120 - 277 VAC |
| Amperage Rating | 30 A | Contact Configuration | SPST - 1 NO |
| Contact Rating | 30 AMP @ 120/240 VAC, 20 AMP @ 28 VDC (Resistive), 30 AMP @ 120/240 VAC (Inductive), 5 AMP @ 120/240 VAC (Tungsten), 20 AMP @ 120 - 277 VAC, 10 AMP @ 120/277 VAC (Ballast) | Dimensions | 87.3 x 130.2 x 200.0 mm |
| Frequency Rating | 50/60 Hz | Number of Poles | 1 |
| HP Rating | 2 HP | Operating Cycles | ON-OFF-ON |
| Mounting | Wall Mount | Color | Gray |
| Enclosure Type | Indoor Metal Enclosure | Temperature Rating | 40.0 degrees C |
| For Use With | Lighting | Standards | UL Rating, Meet Title 20/24 Compliance |
| Application | Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor | UPC | 078275147690 |
