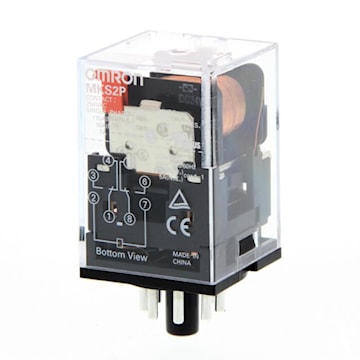

OMRON CANADA INC. MKS2PAC120 MKS Relay

Price $30.98 / EA
Inventory
Available for backorder
0for pick up at Burlington
Qty EA
Manufacturer:OMRON CANADA INC.
Manufacturer #:MKS2PAC120

Description

Relay, plug-in, 8-pin, DPDT, 10 A, mech indicator

Specifications

Brand Name Omron Item Name General-Purpose Relay
Voltage Rating 250 VAC/VDC Amperage Rating 10 A
Power Rating 2.7 VA Operating Cycles 18000 hr Mechanical, 1800 hr Electrical
Contact Configuration DPDT Type 8-Pin
Series/Model MK-S Contact Rating 10 A at 250 VAC, 10 A at 30 VDC, 5 A at 250 VAC, 5 A at 30 VDC (Resistive Load), 7 A at 250 VAC (Inductive Load)
Coil Rating 120 VAC Operate Time 20 Millisecond at AC, 30 Millisecond at DC
Release Time 20 Millisecond Connection Plug-In
Contact Material Silver Tin Indium Mounting Socket
Dielectric Strength 2500 VAC, 1000 VAC Resistance 1.13 KO
Temperature Rating -40 to 60 °C Dimensions 34.5 mm L x 34.5 mm W x 52.5 mm H
Standards CSA Certified, cRUus Listed UPC 612647103053
