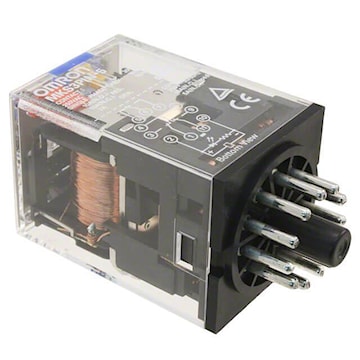

OMRON CANADA INC. MKS3PIN5DC24 MKS Relay
omrmks3pin5dc24
OMRON CANADA INC. MKS3PIN5DC24 MKS Relay
Price
$40.37
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:MKS3PIN5DC24
Description
Relay, plug-in, 11-pin, 3PDT, 10 A, mech & LED indicator, test button
Specifications
| Brand Name | Omron | Item Name | General-Purpose Relay |
| Voltage Rating | 250 VAC/VDC | Amperage Rating | 10 A |
| Power Rating | 1.4 W | Operating Cycles | 18000 hr Mechanical, 1800 hr Electrical |
| Contact Configuration | 3PDT | Type | 11-Pin |
| Series/Model | MK-S | Contact Rating | 10 A at 250 VAC, 10 A at 30 VDC, 5 A at 250 VAC, 5 A at 30 VDC (Resistive Load), 7 A at 250 VAC (Inductive Load) |
| Coil Rating | 24 VDC at 55.8 mA | Operate Time | 20 Millisecond at AC, 30 Millisecond at DC |
| Release Time | 20 Millisecond | Connection | Plug-In |
| Contact Material | Silver Tin Indium | Mounting | Socket |
| Dielectric Strength | 2500 VAC, 1000 VAC | Resistance | 430 O |
| Temperature Rating | -40 to 60 °C | Dimensions | 34.5 mm L x 34.5 mm W x 52.5 mm H |
| Standards | CSA Certified, cRUus Listed | UPC | 612647103084 |
