sum23biz4l

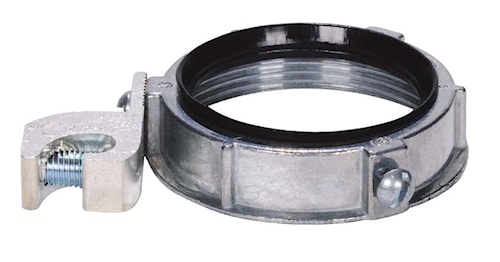

COLUMBIA MBF 23BIZ4L 1-1/4 INSULATED GROUND BUSHING
sum23biz4l
COLUMBIA MBF 23BIZ4L 1-1/4 INSULATED GROUND BUSHING
Inventory
Unavailable for order
Manufacturer:COLUMBIA MBF
Manufacturer #:23BIZ4L
Description
1-1/4 inch Die Cast Ground Bushing with lay-in lug, No.14 to 4 ground lug capacity.
Specifications
| Brand Name | Steel Electric Products | Item Name | Grounding Bushing with Lay-In Lug |
| Connection Size | 1-1/4 in | Connection Type | MNPT |
| Material | Die Cast Zinc | Type | Insulated |
| Dimensions | 1-7/8 in dia x 5/8 in H | Specifications | 14 - 4 AWG |
| Temperature Rating | 150 °C | For Use With | Rigid and IMC Conduit, Copper or Aluminum Grounding Conductors |
| Includes | Set Screw | Packaging Quantity | 25/Pack |
| Standards | cULus Listed, UL E93683 |
