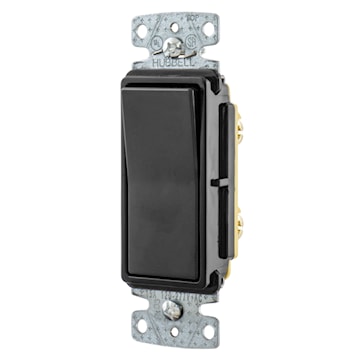

HUBBELL CANADA INC. RSD115BK AC Decorator Switches General Purpose, Standard Rocker Switch 277 V, 15 A, Black
hubrsd115bk
HUBBELL CANADA INC. RSD115BK AC Decorator Switches General Purpose, Standard Rocker Switch 277 V, 15 A, Black
Price
$1.34
/ EA
Inventory
29for delivery
20for pick up at
Burlington
Manufacturer:HUBBELL CANADA INC.
Manufacturer #:RSD115BK
Description
tradeSELECT® Decorator quiet rocker switch. 1-pole and 15 A at 120 to 277 VAC switch. Self-grounding, push, back and side-wire. Smooth, quiet rocker. Ultrasonically welded cover and base. -20 to 60°C operating temperature.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | AC Decorator Switches |
| Item Name | Rocker Switch | Type | General Purpose, Standard |
| Voltage Rating | 277 V | Amperage Rating | 15 A |
| Contact Configuration | 2 Position | Number of Poles | 1 |
| Number of Positions | 2 | Power Rating | 4155 W |
| Contact Rating | Per UL 20 | Actuator | Rocker |
| Mounting | Screw Mount | Connection | Push Wire, Back and Side Wire |
| Terminal Type | Screw | Enclosure Standard | None |
| Temperature Rating | -20 °C Minimum without Impact, 60 °C Maximum Continuous | Material | Composite |
| Color | Black | Operating Cycles | 30000 |
| Environmental Conditions | Indoor Dry unless protected by additional means | Standards | NEMA WD-1, UL 20 |
| Application | Residential Wiring Devices | UPC | 883778101168 |
