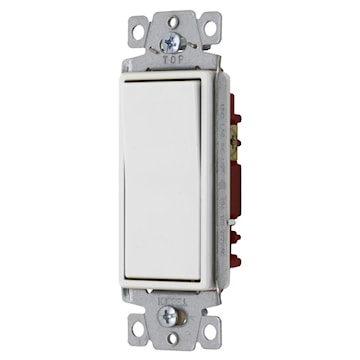

HUBBELL CANADA INC. HBL2121347W AC Decorator Switches Standard, General Purpose, Canadian Version Specification Grade Rocker Switch 347 V, 20 A, White

Inventory
Unavailable for order
Manufacturer:HUBBELL CANADA INC.
Manufacturer #:HBL2121347W
Documents Documents

Description

StyleLine® Specification grade single-pole switch. Back and side wired. Silver cadmium oxide contacts. Tri-erive mounting and termination screws. One piece rivet less spring arm and terminal plate. User ready termination with screws backed out. Accepts 14 to 10 AWG.

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand AC Decorator Switches
Item Name Specification Grade Rocker Switch Type Standard, General Purpose, Canadian Version
Voltage Rating 347 V Amperage Rating 20 A
Contact Configuration 2 Position Number of Poles 1
Number of Positions 2 Power Rating 5540 W
Contact Rating Per UL 20 Actuator Rocker
Mounting Screw Mount Connection Terminal Screw
Terminal Type Screw Enclosure Standard None
Temperature Rating -40 °C Minimum without Impact, 75 °C Maximum Color White
Operating Cycles 50000 Standards NEMA WD-1, UL20 Listed
Application For Commercial Use UPC 783585011820
