hubds120

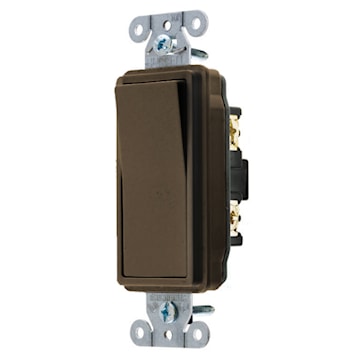

HUBBELL CANADA INC. DS120 AC Decorator Switches Standard, General Purpose Specification Grade Decorator Rocker Switch 120/277 VAC, 20 A, Brown
hubds120
HUBBELL CANADA INC. DS120 AC Decorator Switches Standard, General Purpose Specification Grade Decorator Rocker Switch 120/277 VAC, 20 A, Brown
Price
$16.85
/ EA
Inventory
Unavailable for order
Manufacturer:HUBBELL CANADA INC.
Manufacturer #:DS120
Description
StyleLine® Specification grade commercial series decorator single-pole switch. Back and side wired. Two switch handle positions.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | AC Decorator Switches |
| Item Name | Specification Grade Decorator Rocker Switch | Type | Standard, General Purpose |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 20 A |
| Contact Configuration | 2 Position | Number of Poles | 1 |
| Number of Positions | 2 | Series | General Purpose |
| Power Rating | 5540 W | Contact Rating | Per UL 20 |
| Actuator | Rocker | Mounting | Screw Mount |
| Connection | Terminal Screw | Terminal Type | Screw |
| Enclosure Standard | None | Temperature Rating | -40 °C Minimum without Impact, 75 °C Maximum |
| Material | Thermoplastic | Color | Brown |
| Operating Cycles | 50000 | Environmental Conditions | Indoor Dry unless protected by additional means |
| Standards | NEMA WD-1, UL20 Listed, CSA Certified | Application | For Commercial Use |
| UPC | 783585151304 |
