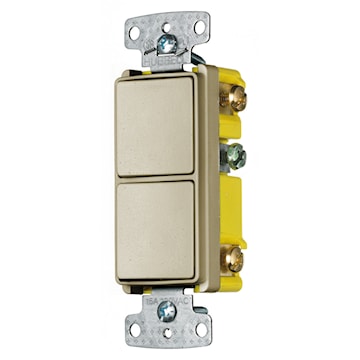

HUBBELL CANADA INC. RCD303I Trade-Select™ Rocker, Standard Combination Decorator Device 277 V, 15 A, Ivory
hubrcd303i
HUBBELL CANADA INC. RCD303I Trade-Select™ Rocker, Standard Combination Decorator Device 277 V, 15 A, Ivory
Inventory
Unavailable for order
Manufacturer:HUBBELL CANADA INC.
Manufacturer #:RCD303I
Description
tradeSELECT® Combination quiet rocker switch/device. Two (2) 1-pole and 15 A at 120 to 277 VAC switch. Side-wire. Low profile. Self-grounding feature is standard. -20 to 60°C operating temperature.
Smooth, quiet rocker
Low profile, less than 1 inch deep
Self-grounding feature is standard
Specifications
| Brand Name | Hubbell | Sub Brand | Trade-Select™ |
| Item Name | Combination Decorator Device | Type | Rocker, Standard |
| Voltage Rating | 277 V | Amperage Rating | 15 A |
| Contact Configuration | Two Position | Number of Poles | 1 |
| Number of Positions | 2 | Power Rating | 4155 W |
| Contact Rating | 15 A | Actuator | Rocker |
| Mounting | Screw Mount | Connection | Side Wired |
| Temperature Rating | -20 °C Minimum without Impact, 60 °C Maximum Continuous | Color | Ivory |
| Operating Cycles | 30000 | Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Standards | NEMA WD-1, UL 20 | Application | Residential |
| UPC | 883778110269 |
