OMRON CANADA INC. E2EC-C3D1-M1J 0.5M IND PROX,2 WIRE,NOM8.INLINE
Description

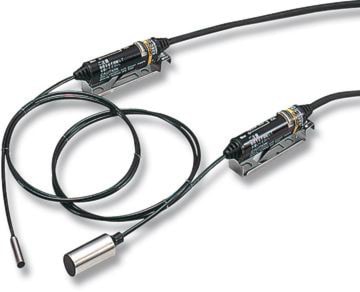

Ultra Small Inductive Proximity Sensor with 8 mm dia, 3 mm sensing distance, NO operation. Shielded DC 2-wire sensor for demanding mounting conditions. It features the smallest sensor heads for reliable sensing in areas where mounting space is crucial. The miniature size of the sensing head is achieved by separating the sensing component from the amplifier and placing the amplifier in the cable.
Specifications
Brand Name | Omron | Item Name | Inductive Proximity Sensor |
Type | Inline, Shielded | Sensing Distance | 3 mm |
Shape | Cylindrical | Connection | M8 Connector |
Output | NO | Output Circuit Type | 2-Wire |
Dimensions | 47 mm L | Series/Model | E2EC |
Voltage Rating | 12 - 24 VDC | Operating Frequency | 1 kHz |
Load Current | 5 - 100 mA | Degree of Protection | IP67 |
Indicator Type | Red Operation, Green Setting | Material | Brass |
Temperature Rating | -25 to 70 °C | Environmental Conditions | -25 to 70 °C Storage Temperature, 35 - 95% Humidity, 10 - 55 Hz Vibration, 1000 m/s² Shock |
Standards | CE Certified |
