OMRON CANADA INC. E3ZMV86 Diffuse Color Mark,PNP,M8 Conn
omre3zmv86
OMRON CANADA INC. E3ZMV86 Diffuse Color Mark,PNP,M8 Conn
Price
$576.00
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:E3ZMV86
Description

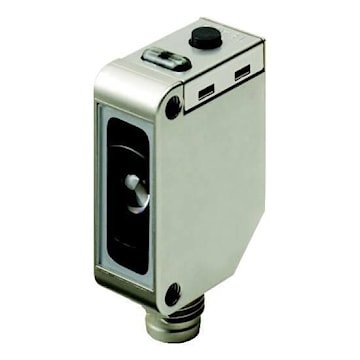

Registration mark sensor, rectangular housing, stainless steel, white LED, diffuse, 12 ± 2 mm, with teach-button, PNP, Light-ON/Dark-ON, M8 4-pin connector
Specifications
| Brand Name | Omron | Item Name | Photoelectric Sensor |
| Type | Square | Voltage Rating | 10 - 30 VDC |
| Emitter Light Source | Dark/Light | Sensing Distance | 10 - 14 mm |
| Output | 100 mA | Light Source | 450 - 700 nm White LED |
| Connection Type | 4-Pin M8 Connector | Response Time | 50 Microsecond |
| Material | SUS316L Stainless Steel | Series/Model | E3ZM-V |
| Sensing Mode | Diffuse Reflective | Frequency Rating | 50/60 Hz |
| Circuit Type | PNP Open Collector | Indicator Type | Yellow Operation, Green Stability, Red Teaching |
| Degree of Protection | IP67, IP69K | Temperature Rating | -40 to 60 °C |
| Environmental Conditions | -40 to 70 °C Storage Temperature, 35 - 95% Humidity, 10 - 55 Hz Vibration, 500 m/s² Shock | Dimensions | 21 mm W x 10.8 mm D x 39.2 mm H |
| UPC | 612647101723 |
