cuhe34tb120

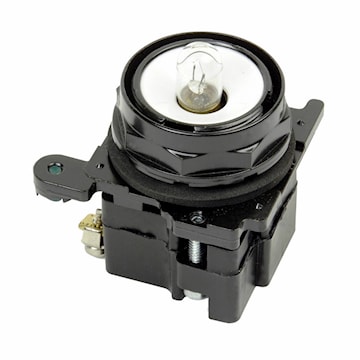

EATON E34TB120 Indicating Light 120 VAC, Corrosion-Resistant, Illuminated, Standard Actuator, Watertight/Oil
cuhe34tb120
EATON E34TB120 Indicating Light 120 VAC, Corrosion-Resistant, Illuminated, Standard Actuator, Watertight/Oil
Inventory
Unavailable for order
Manufacturer:EATON
Manufacturer #:E34TB120
Description
Eaton E34 pushbutton, Corrosion Resistant Indicating Light Component, Watertight and Oiltight, Without lens, Standard actuator, Incandescent, Transformer, 120 V
Specifications
| Brand Name | Eaton | Item Name | Indicating Light |
| Type | Corrosion-Resistant, Illuminated, Standard Actuator, Watertight/Oil | Voltage Rating | 120 V |
| Lamp Type | Incandescent | Series/Model | E34 |
| Nominal Diameter | 30.5 mm | Base Material | Metal |
| Average Life | 20000 hr | Terminal Connection | Screw |
| Enclosure Type | NEMA 1, 2, 3, 3R, 3S, 4, 4X, 12, 13, IP65 | Temperature Rating | 1 - 150 °F Operating, -40 to 176 °F Storage |
| Dimensions | 2.4 in L x 2.1 in W x 3.4 in H | Standards | CSA Certified, CE Certified, FDA 3-A, UL Listed |
| Application | For Electrical Assemblies, Panels and EOEMs | UPC | 782113705279 |
