ham1418m16

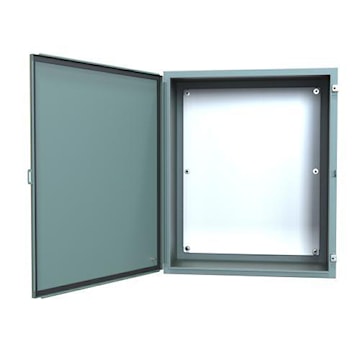

HAMMOND MANUFACTURING 1418M16 1418 Series Enclosure with Panel Mild Steel NEMA 12, IP54 914 mm H x 762 mm W x 406 mm D Gray
ham1418m16
HAMMOND MANUFACTURING 1418M16 1418 Series Enclosure with Panel Mild Steel NEMA 12, IP54 914 mm H x 762 mm W x 406 mm D Gray
Inventory
Unavailable for order
Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1418M16
Description
Wall mount enclosure type 12 constructed of 14 gauge mild steel door and enclosure with ANSI 61 grey powder coating on the outside, white powder coating on the inside. Continuous hinge door with clamps. Door is secured with easily operated stainless steel clamps. Provision for padlocking. A removable 12 gauge inner panel is included. Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water.
Specifications
| Brand Name | Hammond Manufacturing | Sub Brand | 1418 Series |
| Item Name | Enclosure with Panel | Type | Gangable, Single Door, Two Lock |
| Width | 762 mm | Depth | 406 mm |
| Height | 914 mm | Cover Type | Continuous Hinged |
| Gauge | 14 | NEMA Rating | NEMA 12, IP54 |
| Series | 1418 | Mounting Type | Wall |
| Material | Mild Steel | Finish | Powder Coated |
| Color | Gray | Standards | CE, CSA Certified, UL Listed |
| Application | Designed to House Electrical, Electronic, Hydraulic or Pneumatic Controls and Instruments. Provides a Degree of Protection from Falling Dirt, Dust, Oil and Water | UPC | 623980369501 |
Packages
| 1 - rarr_unit_1 |
