hubhbl2815sw

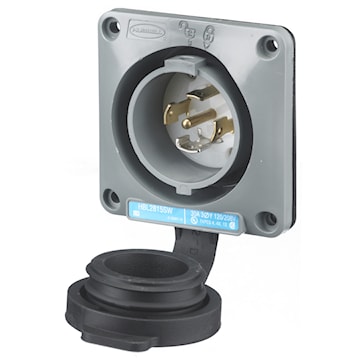

HUBBELL CANADA ULC HBL2815SW Plug L21-30P WP inlet twlo+door 3ph 30A 120/208V
hubhbl2815sw
HUBBELL CANADA ULC HBL2815SW Plug L21-30P WP inlet twlo+door 3ph 30A 120/208V
Price
$339.26
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2815SW
Description
Hubbell SAFETY SHROUD come in black cable plugs and connectors with closure cap or grey surface inlet/outlet with door. Made of high impact thermoplastic UV resistant providing a type 4X watertight connection. The cord entrance is sealed through compression of the rubber gland. They come in version twist-lock 2 pole 125-250-277 volts, 3 pole 125/250 volts, 3 phase 250-480-120/208 volts in 20 and 30 amp models.
UL Type 4X Environmental seal protects connection while in use.
One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
Closure cap is included for environmental seal when device is not in use
Catalog number and color-coded voltage rating are easily visible even when in use
Catalogue number and color-coded voltage rating are easily visible even when in use
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock® |
| Item Name | Flanged Inlet | Type | Standard |
| Voltage Rating | 120/208 VAC | Amperage Rating | 30 A |
| Conductor Size | 12-8 AWG | Number of Conductors | 5 |
| Connection Type | Screw Terminal | Wattage | 6240 W |
| Phase | 3 | Material | Thermoplastic |
| Color | Gray/White | Number of Ports | 4 |
| Length | 3.75 in | Mounting | Screw/Surface |
| NEMA Rating | NEMA L21-30P | Standards | UL 498 Listed, NEMA WD1 and WD5 |
| Application | Extra Heavy-Duty Industrial | UPC | 783585232126 |
