fesh-qs-8

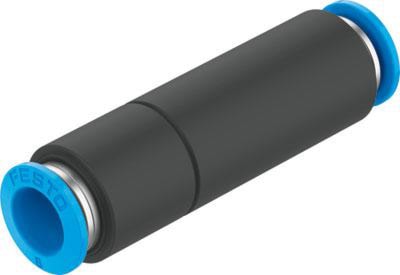

FESTO INC 153464 H-QS-8 non-return valve
fesh-qs-8
FESTO INC 153464 H-QS-8 non-return valve
Price
$60.08
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:153464
Description
non-return valve H-QS-8 Valve function=Non-return function, Pneumatic connection, port 1=QS-8, Pneumatic connection, port 2=QS-8, Mounting type=Line installation, Standard nominal flow rate=681 l/min
Specifications
| Brand Name | Festo | Item Name | Compressed Air Check Valve |
| Pressure Rating | -1 to 10 bar | Body Material | Aluminum |
| Series/Model | H | Nominal Size | QS-8 |
| Flow Rate | 681 l/min | Color | Black |
| Finish | Anodized | Dimensions | 8 mm OD x 54.9 mm L |
| Temperature Rating | 0 - 60 °C | Standards | RoHS Compliant |
