omrzeq222s

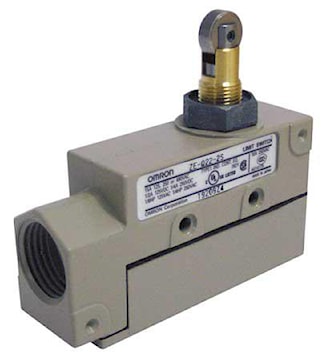

OMRON CANADA INC. ZEQ222S SWITCH
omrzeq222s
OMRON CANADA INC. ZEQ222S SWITCH
Price
$104.00
/ EA
Inventory
5for delivery
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:ZEQ222S
Description
General-purpose Enclosed Switches with High Breaking Capacity and High Durability. Z General-purpose Basic Switches are built into ZE, ZV, and ZV2 Switches. They provided high durability and high breaking capacity.. X Basic Switches with magnetic blowout are built into XE, XV, and XV2 Switches. DC models have also been added to the series.. Three mounting methods (side, base, and diagonal side) and many types of actuator are available.. Terminals face the front when the cover is removed for easy connection.
Specifications
| Brand Name | Omron | Item Name | Enclosed Limit Switch |
| Type | General-Purpose | Actuator | Roller Plunger |
| Voltage Rating | 480 VAC, 250 VDC | Contact Configuration | SPDT |
| Travel | 0.5 mm Pretravel, 3.6 mm Overtravel | Dimensions | 86 mm L x 25.4 mm W |
| Amperage Rating | 15 A | Operating Cycles | 10000000 Mechanical, 500000 Electrical |
| Mounting Type | Panel | Degree of Protection | IP60 |
| Connection Type | 1/2-14 NPSM Screw Terminal | Temperature Rating | -10 to 80 °C |
| Environmental Conditions | 35 - 85% Humidity, 10 - 55 Hz Vibration, 1000 m/s² Destruction Shock, 100 m/s² Malfunction | Standards | cULus Listed, CSA Certified, CCC Certified |
| UPC | 612647103793 |
