OMRON CANADA INC. A165ES03U A165E-S-03U
Description

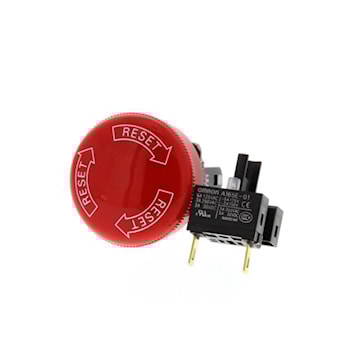

Emergency stop switch, non-illuminated, 30mm dia, push-lock/turn-reset, TPST-NC
Specifications
Brand Name | Omron | Item Name | Emergency Stop Switch |
Type | Non-Illuminated, Push-Lock, Turn-Reset | Size | 30 mm |
Amperage Rating | 1 A | Contact Configuration | SPST-NC |
Dimensions | 49 mm L | Voltage Rating | 125 VAC, 30 VDC |
Degree of Protection | IP65 | Mounting | Panel |
Temperature Rating | -10 to 55 °C | Environmental Conditions | 35 - 85% Humidity, -25 to 65 °C Storage Temperature |
Standards | UL 508, CSA C22.2 No. 14, TUV SUD EN60947-5-1, EN60947-5-5, CQC (CCC) GB/T14048.5 | UPC | 612647105175 |
