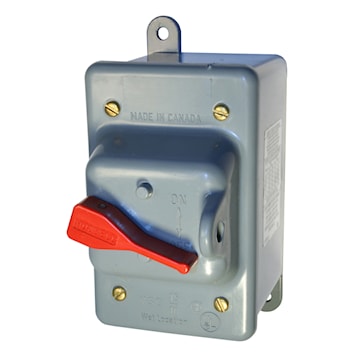

HUBBELL CANADA INC. HBL13R23D Manual Motor Controllers Manual Motor Controller Enclosed, 3-Pole 30A,
Description
CIRCUIT-LOCKĀ® Disconnect switch. NEMA-3/3R, thermoplastic enclosure. 3 HP at 120 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC, 20 HP at 600 VAC. Side-wired circuit-lock wiring style. Back and side-wired wiring style. External activation lever switch. Installer determined wire entry. No predrilled openings or knockouts. Ideal for use on outdoor equipment. Rain tight enclosures. Designed for surface mounting. CIRCUIT-LOCKĀ® NEMA type-3/3R enclosures are suitable as disconnect when used with the 30 A controller/disconnect. Compact size allows for strategic placement.
Specifications
Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Manual Motor Controllers |
Item Name | Manual Motor Controller | Type | Enclosed, 3-Pole |
Voltage Rating | 600 VAC | Amperage Rating | 30A |
Connection | Pressure Screw Terminal | Material | Plastic |
Mounting | Screw Mount | Temperature Rating | Minimum Continuous -40 Deg C without Impact |
Enclosure Type | NEMA 3R | Standards | UL 508 |
Application | Red Handle | UPC | 783585202679 |
