OMRON CANADA INC. D4N2187 D4N-2187
Description

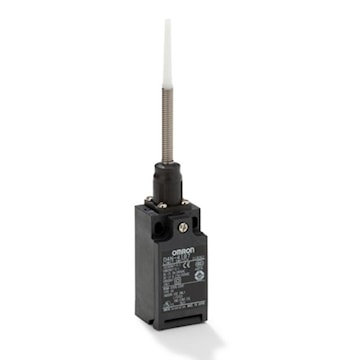

Limit switch, Plastic rod, 1NC/1NO (snap-action), 1NC/1NO (snap-action), G1/2 (1-conduit)
Specifications
Brand Name | Omron | Item Name | Safety Limit Switch |
Actuator | Plastic Rod | Voltage Rating | 250 VAC |
Contact Configuration | 1 NO, 1 NC | Travel | 15° Pretravel |
Dimensions | 47 mm H x 22 mm W | Series/Model | D4N |
Action | Snap | Amperage Rating | 1 mA |
Operating Cycles | 15000000 Mechanical, 500000 Electrical | Mounting Type | Front |
Degree of Protection | IP67 | Connection Type | G1/2 Conduit |
Temperature Rating | -30 to 70 °C | Environmental Conditions | 95% Humidity, 10 - 55 Hz Vibration, 1000 m/s² Destruction Shock, 300 m/s² Malfunction Shock |
Standards | CSA C22.2 No. 14, CQC(CCC) GB/T14048.5, TUV (EN60947-5-1), CCC (GB/T14048.5), EN50047, EN60204-1, EN ISO 14119, GS-ET-15, UL 508 | UPC | 612647105337 |
