omrd4e1a20n
OMRON CANADA INC. D4E1A20N LS, GEN PUR, RLR PLGR W/O CABL
omrd4e1a20n
OMRON CANADA INC. D4E1A20N LS, GEN PUR, RLR PLGR W/O CABL
Price
$111.00
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:D4E1A20N
Description

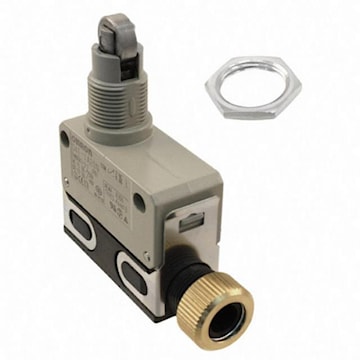

Limit switch, slim sealed, screw terminal, general purpose, roller plunger
Specifications
| Brand Name | Omron | Item Name | Safety Limit Switch |
| Type | Enclosed | Actuator | Roller Plunger |
| Voltage Rating | 125 VAC | Contact Configuration | SPDT |
| Travel | 1.5 mm Pretravel, 3 mm Overtravel | Dimensions | 57 mm W |
| Series/Model | D4E-N | Amperage Rating | 5 A at 125 VAC |
| Operating Cycles | 10000000 Mechanical, 500000 Electrical | Mounting Type | Panel, Side |
| Degree of Protection | IP67 | Temperature Rating | -10 to 80 °C |
| Environmental Conditions | 35 - 95% Humidity, 10 - 55 Hz Vibration, 1000 m/s² Destruction Shock, 300 m/s² Malfunction Shock | Standards | CSA C22.2 No. 14, CCC (CQC) GB/T14048.5, TUV EN60947-5-1, UL508 |
| UPC | 612647100560 |
