OMRON CANADA INC. XS3FM8PUR3S10M M8 PUR 3P 10M
omrxs3fm8pur3s10m
OMRON CANADA INC. XS3FM8PUR3S10M M8 PUR 3P 10M
Price
$30.62
/ EA
Inventory
20for delivery
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:XS3FM8PUR3S10M
Description

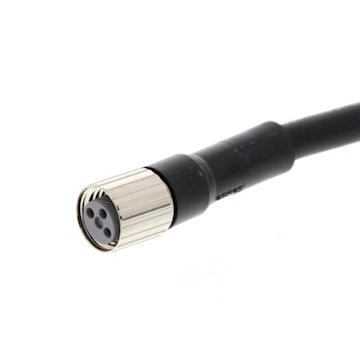

Sensor cable, M8 straight socket (female), 3-poles, PUR fire-retardant halogen free cable, IP67, 10 m
Specifications
| Brand Name | Omron | Item Name | Sensor Cable Assembly |
| Type | Standard | Voltage Rating | 125 VDC |
| Cable Type | Fire-Retardant Halogen-Free | Cable Length | 10 m |
| Connector Type | M8 Straight Socket (Female) | Number of Poles | 3 |
| Material | Copper Alloy/Polybutylene Terephthalate Resin | Series/Model | XS3 |
| Amperage Rating | 1 A | Cable Diameter | 4.3 mm |
| Cable Material | Polyurethane | Number of Conductors | 3 |
| Wire Gauge | 22 AWG | Connector Material | Gold-Plated Copper Alloy |
| IEC Rating | IEC 61076-2-104 | Color | Black |
| Degree of Protection | IP67 | Temperature Rating | -10 to 80 °C |
| Standards | cRUus Listed | UPC | 612647142225 |
